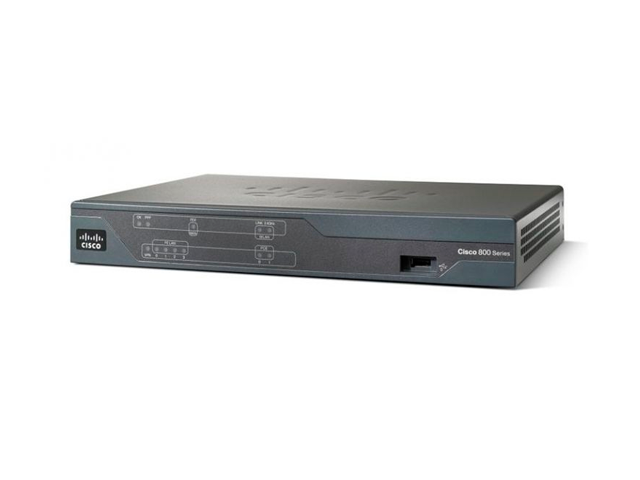

Cisco ISR 800 C881-V-K9

Наименование: Cisco ISR 800
Партномер: C881-V-K9
Описание: Cisco 881V - Router - 4-port switch - VoIP gateway
Цена:

67 105 р. 1 008.99 $ 888.04 €

Технические параметры Cisco ISR 800 C881-V-K9

Device Type Router - 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Capacity IPSec VPN tunnels: 20
Network / Transport Protocol L2TP, IPSec
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH
Encryption Algorithm LEAP, DES, Triple DES, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, TACACS+
Features NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), DiffServ support, MAC address filtering, Intrusion Prevention System (IPS), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy, Bidirectional Forwarding Detection (BFD), Virtual Routing and Forwarding (VRF)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, EN300-386, FCC CFR47 Part 15 B, VCCI V-3
RAM 256 MB (installed) / 768 MB (max) - DDR2 SDRAM - SO-DIMM 200-pin
Flash Memory 128 MB
Framing Format ANSI T1.413
Type ISDN / DSL modem combo
Protocols & Specifications ITU G.991.2 (G.shdsl)
Interfaces LAN: 4 x 10Base-T/100Base-TX - RJ-45 Management: 1 x console - RJ-45 WAN: 1 x 10Base-T/100Base-TX - RJ-45 USB: 1 x 4 pin USB Type A Phone line: 4 x FXS Phone line: 1 x FXO 2 x BRI
Expansion Slots 1 (total) / 1 (free) x ExpressCard 1 (total) / 1 (free) x SO-DIMM 200-pin
Power Device External power adapter - 60 Watt
Voltage Required AC 120/230 V (50/60 Hz)
VoIP Functionality VoIP gateway
VoIP Protocols MGCP, SCCP, SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2
Voice Codecs G.711, G.723.1, G.728, G.729, G.729ab, G.726
Telephony Interfaces 1 line (FXO), 4 phone (FXS), 2 phone (ISDN BRI)
IP Telephony Features Echo cancellation, comfort noise generation (CNG), caller ID, silence suppression
